Club Omega Enushi Edition by Vicious Ant

The Club Omega is a unique hybrid between a bottom feed device utilizing a silicone bottle to feed liquid up to integrated proprietary bottom feed atomizer that is installed within the frame of the Club Omega, giving it an ultra low profile look like a typical all-in-one (AIO) device, with power delivery controlled by the tried and proven Evolv DNA75C chip set.

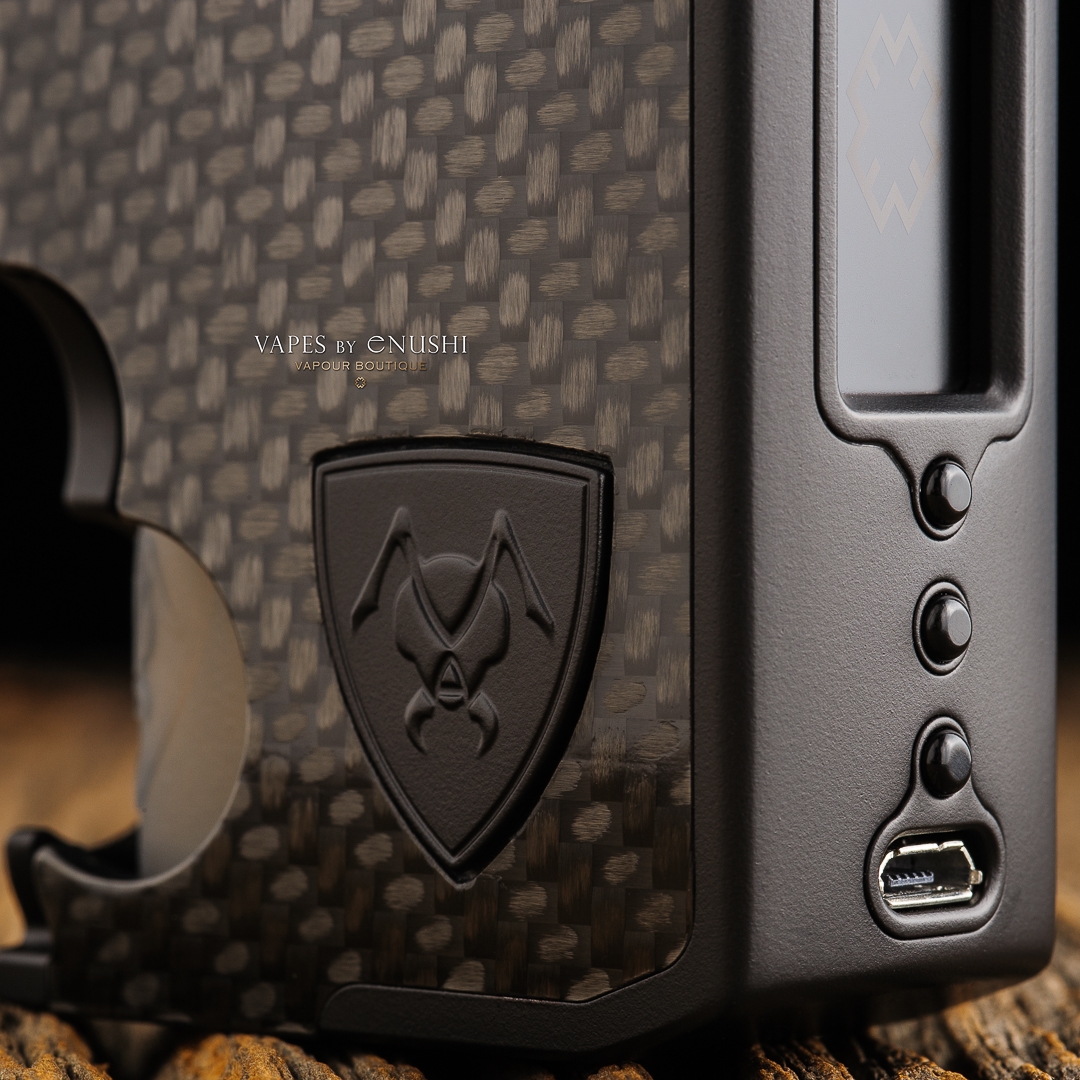

This Enushi Edition exclusive colourway of the Club Omega features a full black colour way, with all polished stainless steel hardware fully coated in black Cerakote for a stealthy "Murdered Out" look, set into a black graphite Cerakoted aluminum frame, and paired with a real carbon fiber door for durability and rigidity that resists expansion, shrinkage, and warping. Topping off the setup, is an included black Delrin 510 drip tip.

Also included with this Vapes by Enushi exclusive version, is an Enushi Edition DESCE NEO neoprene pouch to protect your Club Omega Enushi Edition!

Powered by a single 18650 cell, the Evolv DNA75C chip set provides a full suite of features usable by beginner vapers to the most advanced vapers who wish to utilize the fully programmable nature of this chip set. Almost all functions can be programmed, tweaked, and tuned as desired via the Escribe PC software suite.

Flaunting a frame crafted from aerospace-grade aluminum for an incredible strength to weight ratio. Despite its reduced weight, the performance on this finish does not suffer in the least - a worthwhile trade off.

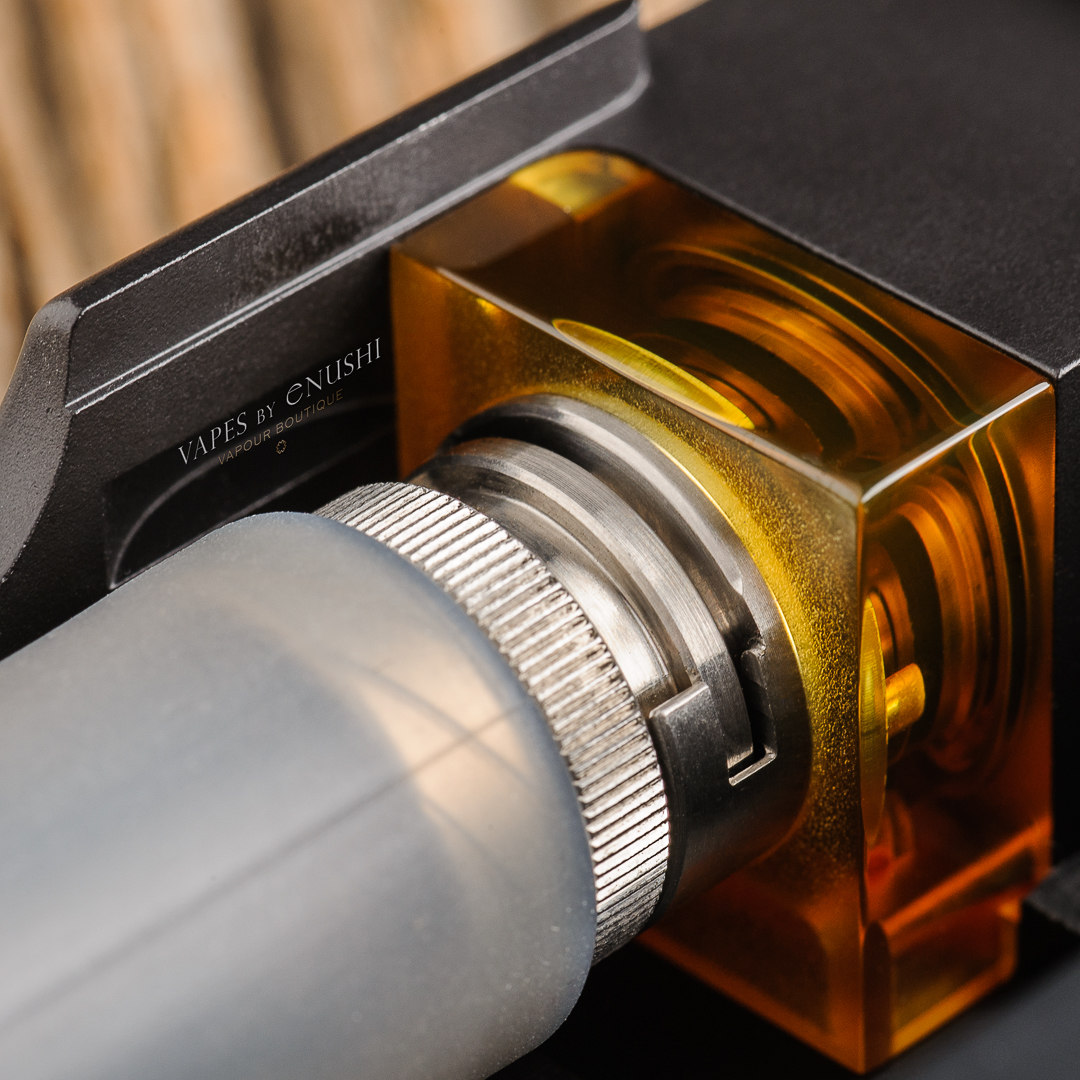

The Club Omega utilizes Vicious Ant's proprietary Easy Slide Bottle System, which allows for quick and easy bottle removal/installation and refilling of the silicone bottle with no need to fiddle with hose connections. Two bottles are included in this purchase - one is installed in the device, and the second bottle comes with a carrier system that allows users to carry a pre-filled bottle for even faster and more convenient liquid refills!

The Club Omega Atomizer is the heart of the Club Omega, a proprietary rebuildable atomizer design that sets within the frame of the Club Omega for a stealthy integrated look.

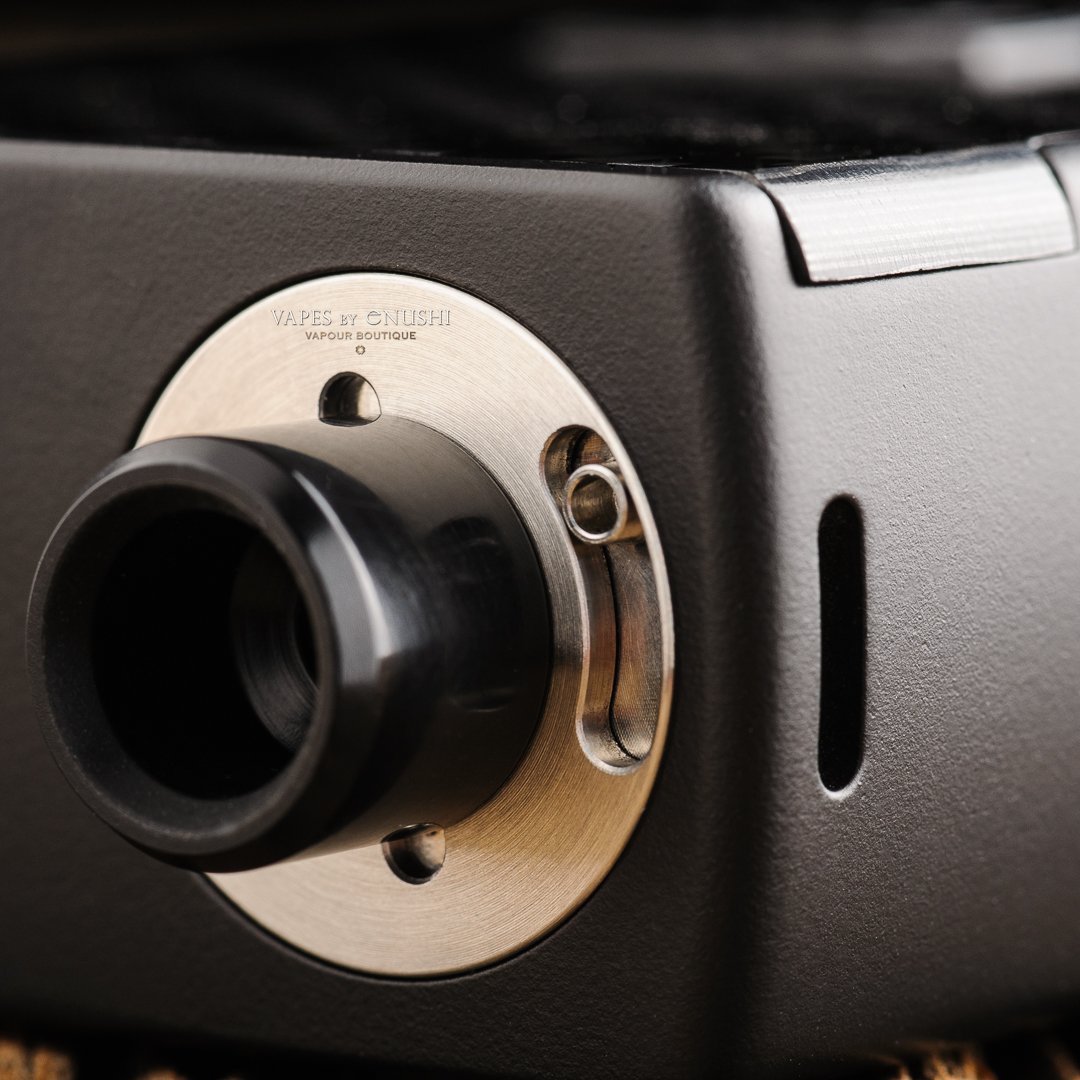

Air flow is easily adjustable from the outside of the device, even while the atomizer is installed. Turn the little nub counter-clockwise to close down airflow for an extremely tight mouth-to-lung (MTL) vaping experience, or turn it clockwise all the way for a restricted direct-lung (DL) vaping experience, or anything in between to easily fine tune the draw resistance to your liking!

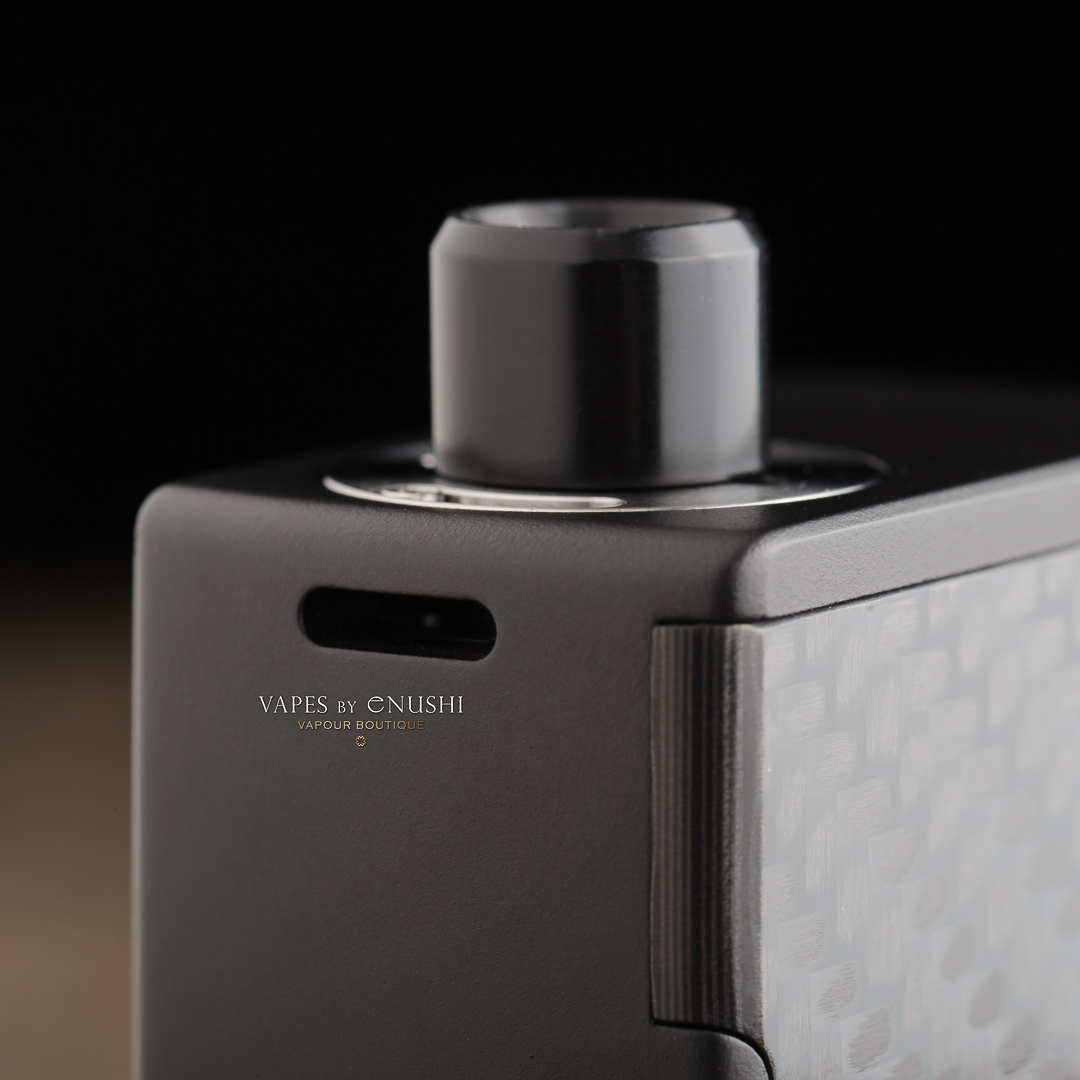

Air flow intake into the body of the Club Omega occurs at the high side of the device via an air intake slot, located in an area that will not be easily blocked by your hand and minimizes any condensation build up around the area.

The mouth piece receptacle of the Club Omega Atomizer is a standard 510 connection, allowing you to use any drip tip as you desire, or use the included 510 drip tip that is matched to the door panel included with this Club Omega!

The Club Omega Atomizer utilizes a standard 510 threaded connection at the bottom, allowing users to easily mount and test their builds on standard mods before installing within the Club Omega.

The Club Omega Atomizer air intake is fed from the top of the atomizer's chamber, allowing for a fairly leak-resistant design. Because you cannot see the atomizer when it is installed in to the Club Omega's body, this top airflow design allows for better leak resistance and keeps the inside of your Club Omega cleaner, longer without accidental over-squonking or spills.

The Club Omega Atomizer routes the top-fed air from the top of the chamber, down along the sides to the very lowest section of the coil posts where the air flow is re-directed through smaller air holes to focus the air stream to strike the coil on both sides of the coil. This method of air delivery provides a much more even air flow distribution across the coil, while focusing the air flow into a higher velocity stream to strike the coil for greater vapourization performance. At the same time, this air flow re-routing design minimizes any chances of over-squonking or over-feeding of liquid into the atomizer, and risk of spilling liquid into the Club Omega's body is minimized with this design.

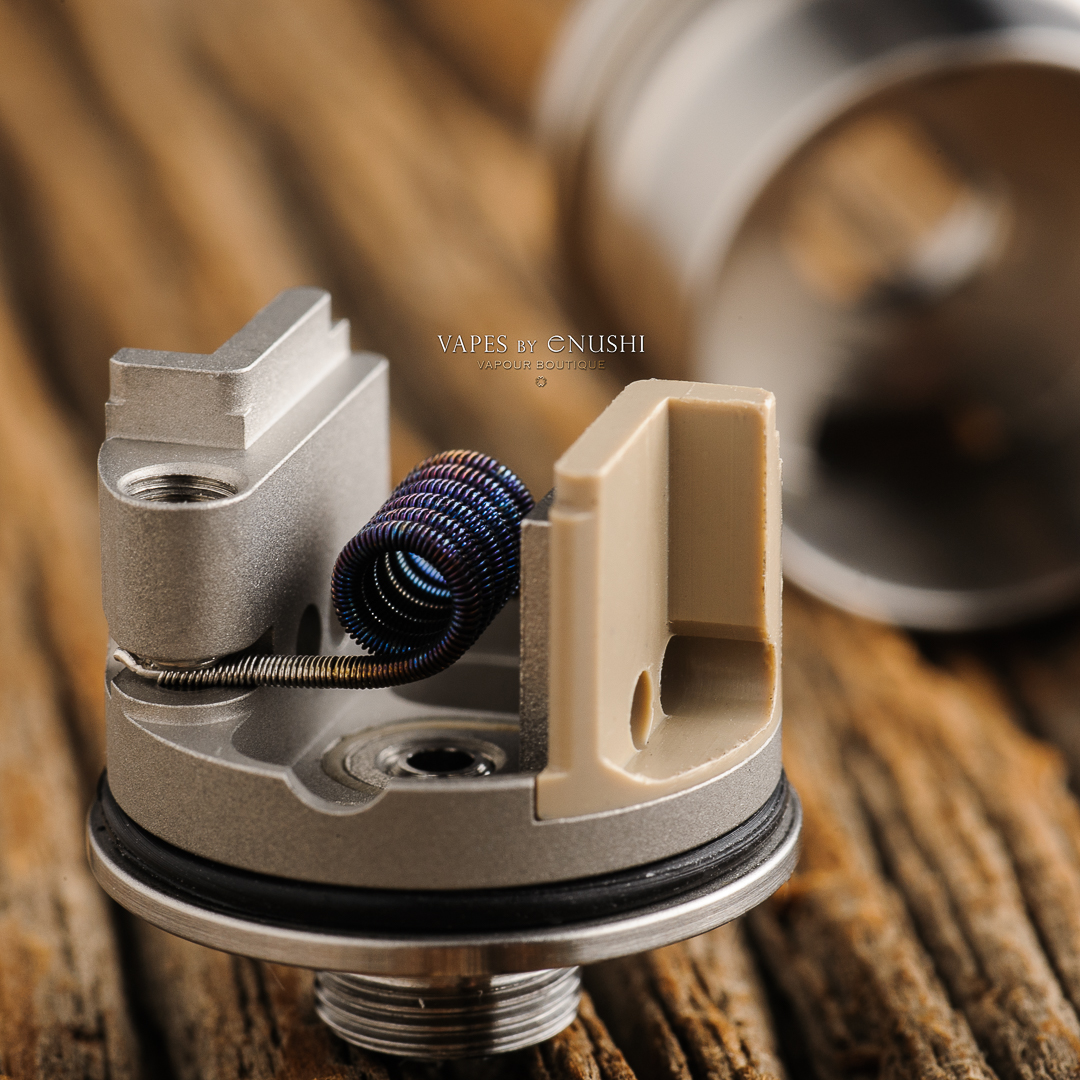

The Club Omega Atomizer features an easy-to-build two-post design, with generous build space to install even complex coil builds such as this 2x26/36 Fused Clapton Coil shown in these photos. The default Club Omega Atomizer that comes included has 4 air holes, each 2mm in diameter. When run with the air flow control wide open, the air resistance is perfect for a slightly restricted direct lung vaping experience. An 4x1.5mm air hole version of the Club Omega Atomizer is also available for optional purchase if you prefer a tighter air flow with a more focused air stream.

Servicing / Maintenance:

All Club Omega's sold by Vapes by Enushi has >> Sanchem’s NO-OX-ID A-Special electrical conductivity grease << applied to the threads between the stainless steel battery cap and the frame. The purpose of this grease is to minimize galvanic corrosion at this connection point which eventually leads to the build up of aluminum oxide. Oxidation build up at this connection point will eventually lead to inconsistent device performance, hot battery cap, and poor battery life. As such, >> NO-OX-ID A-Special << should be used on all mixed-metal connection points to prevent oxidation build up due to galvanic corrosion, while maintaining more consistent voltage transfer and minimizing voltage drop. This grease should be cleaned off and re-applied every couple of months of consistent usage.

>> Sanchem’s NO-OX-ID A-Special electrical conductivity grease << is useful on all mods at power transfer points, and is useful in any advanced vaper's tool kit.

To purchase more >> NO-OX-ID <<, check your local hardware suppliers, or find more at www.vapesbyenushi.com by searching “Sanchem” or “NOOXID”.

Club Omega Dimensions:

80mm x 55mm x 26mm

Club Omega Specifications:

• Carbon fiber door panel with magnets

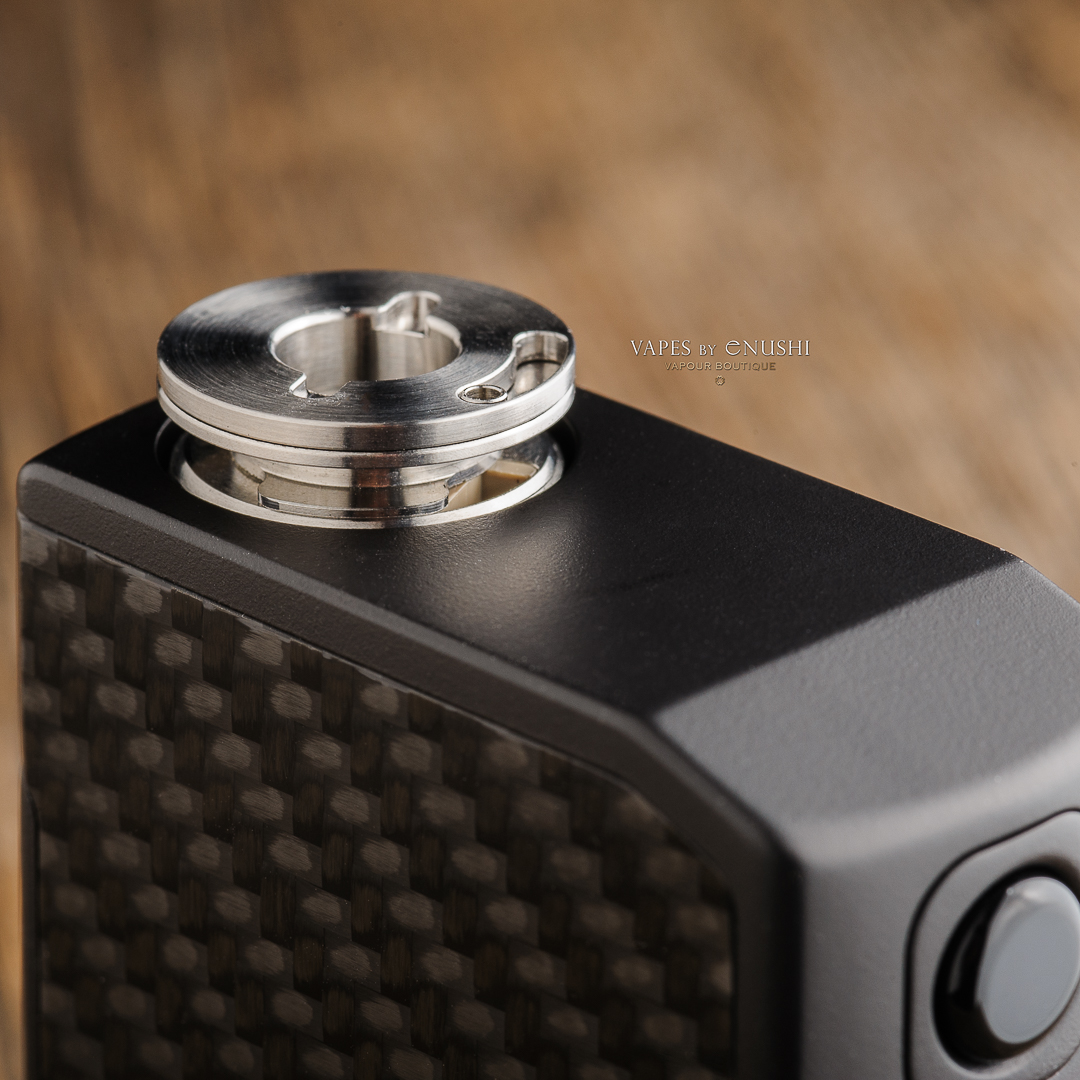

• Vicious Ant's self-adjusting 510 connection
• Single 18650 battery configuration
• DNA75C chipset by Evolv
• 316 stainless steel battery cap, switch, and bezel
• T7 aerospace-grade aluminum body
• Cerakote finish on frame
• Laser engraved serial number
• Silver-plated positive contacts
• Stainless steel Vicious Ant emblem logo, black Cerakoted
• Utilizes Vicious Ant's trademark Easy Slide bottle mechanism, allowing for easy bottle swapping
• Cerakoted finish: Cerakote has a unique ceramic structure and formulation. It is a polymer-ceramic coating that enhances a number of physical performance properties including abrasion/wear resistance, corrosion resistance, chemical resistance, impact strength & hardness.

New Features:

• Exclusive Club Omega Atomizer (18mm Diameter x 18.5mm Height)
• 2mm x 8mm air intake slot vents
• Two different rebuildable atomizers available for tighter or looser draw preference:
• 2mm x 4 (default - included with the Club Omega)
• 1.5mm x 4 (optional purchase)

Package Includes:

• Club Omega Enushi Edition DNA75C mod
• 2x silicon bottles - both slide fitted
• 1x Club Omega Atomizer, 2mm x 4 airhole veresion
• 1x keychain bottle holder
• 1x Enushi Edition DESCE Neo pouch

WARNING: It is highly recommend that you fully clean out this product before the first time you use it. While the factory does a decent job at removing dust, shavings, machining lubricants and greases, there is still the potential for trace elements to remain, and it is best recommended that you do an additional cleaning to meet your standard of cleanliness.

DISCLAIMER: Rebuildable atomizers are for experienced vapers with access to meters and a working knowledge of Ohms Law, Watts Law, battery safety, and how general electricity works. Please ensure care is taken as to not cause damage nor harm to the atomizer, your battery, the vaping device, yourself, others, or personal property.

Vapes by Enushi is not responsible for misuse of product, or dangerously low coil builds. Vapes by Enushi is not liable for the use of improper batteries for your builds.
